Femtosecond lasers
BIOLIT 2

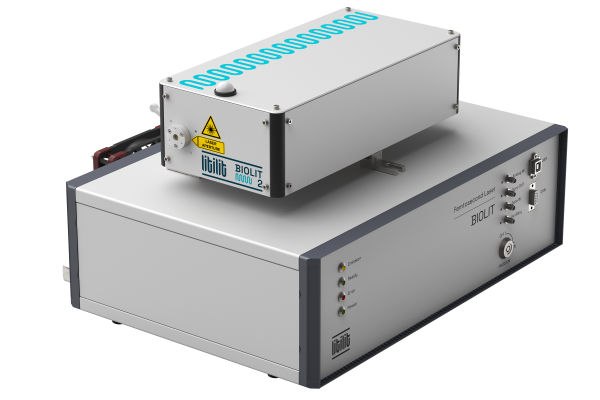

Femtosecond Fiber Laser for Biophotonics
The Biolit 2 is a compact, air-cooled femtosecond laser designed for multiphoton microscopy, biophotonics and other non-linear optics applications. The industrial-grade device is exceptionally robust, maintenance-free and affordable. A combination of ultra short (typ 55 fs) and clean pulses with integrated dispersion compensation, excellent beam quality and optimized repetition rate enables unparalleled quality multiphoton imaging while preserving the object.
- Wavelength
- 1050 nm
- Pulse duration
- 70 fs
- Average power
- 2 W
- Repetition rate
- 20 MHz
Key features
Robust and stable
Flexible repetition rate
Maintenance-free & turn-key
Integrated dispersion pre-compensation
Technical Specifications
Full specification from the BIOLIT 2 datasheet. Measurement conditions and patents are in the Notes tab.
- Central wavelength
- 1050 ± 5 nm
- Average power
- > 2 W
- Pulse duration
- < 70 fs (typ. 55 fs)
- Pulse duration stability 1)
- < ± 3 fs
- Pulse strehl ratio
- > 0.9
- Tunable dispersion pre-compensation 2)
- -6 000 fs² ... +500 fs²
- Pulse repetition rate
- 20 MHz
- Analog power control
- 1 - 100%
- Beam quality
- M² < 1.2 (typ. 1.05)
- Beam circularity 3)
- > 0.9 (typ. 0.94)
- Beam diameter (1/e² level)
- 1.5 ± 0.3 mm
- Beam divergence (full angle)
- < 1.5 mrad
- Beam pointing (RMS) 1)
- < 20 μrad
- Beam pointing vs temp.
- < 15 μrad/°C
- Pulse Energy Stability (RMS) 4)
- < 1%
- Power Stability (RMS) 1)
- < 1%
- Warm-up time (cold start)
- < 10 min
- Available control interfaces
- USB, CAN
- Operating voltage
- 24V, 8A (100...240 V AC, 47...63 Hz to 24V AC/DC converter included)
- Operating temperature
- 18 – 30 °C
- Humidity
- Non-condensing
- Transportation/storage temperature
- - 20 °C – +70 °C
- Dimensions – Laser head (L x W x H)
- 313 x 152 x 107 mm
- Dimensions – Control unit (L x W x H)
- 449 x 370 x 140 mm
- Cooling – Laser head
- air (passive)
- Cooling – Control unit
- forced air (fans)

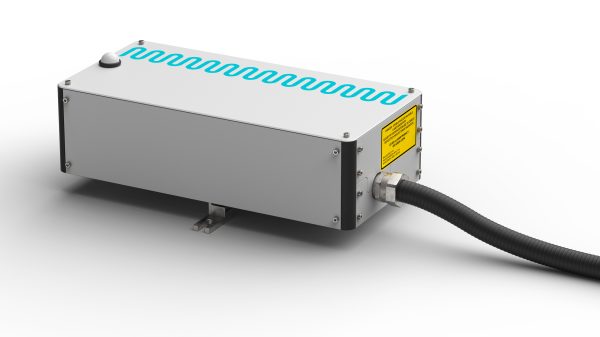

- Umbilical length
- 3 ± 0.1 m
1) Measured during 8 h operation starting 30 minutes after warm-up. Environmental temperature stability within ± 1 °C.
2) Equivalent of 80 mm of SF10 glass.
3) Defined as the worst case beam ellipticity along the z-scan (± 5 × LRayleigh) of the beam.
4) Measured within 10 s time interval.
5) Technology is protected by international patents: US10038297, JP6276471, EP3178137, CN106575849.
Applications
Multiphoton microscopy
Photopolymerization
Ophthalmology
OPO pumping
Neuroscience
Where BIOLIT 2 is used
Each application page walks through the problem, the process and the results.
All applications
Multiphoton microscopy and biophotonics
Short, clean 1050 nm pulses for multiphoton imaging, neuroscience, photopolymerization and OPO pumping.
Integration resources
BIOLIT 2 datasheet
Full PDF datasheet with performance curves, beam profiles, drawings and electrical specifications.
Dimensions and drawings
Laser head 313 x 152 x 107 mm, control unit 449 x 370 x 140 mm. Dimensional drawings are in the datasheet.
Support and dealers
Integration questions, service and your regional contact.
Full lineup
Which system is right for you?
Every Litilit laser is built on the same robust fiber platform. Choose the model that best matches your pulse duration, power, and repetition rate requirements.
| Specification | BIOLIT 2 Femtosecond Fiber Laser for Biophotonics Selected | NEOLIT Ultrashort pulse fiber seeder for laser amplifier | INDYLIT 20 Industrial Femtosecond Laser for Material Processing |
|---|---|---|---|
| Wavelength | 1050 nm | 1020–1070 nm | 1030/515 nm |
| Pulse Duration | 70 fs | 1–10 ps | 400 fs – 4 ps |
| Average Power | 2 W | 1–50 mW | 20 W |
| Repetition Rate | 20 MHz | 10–40 MHz | 80 kHz – 1.0 MHz |
| Primary Applications | Multiphoton microscopy, Photopolymerization, Ophthalmology | Seeding femtosecond and picosecond fiber and DPSS lasers | Materials microprocessing, Ophthalmology, Semiconductor and electronics |
| Request Quote | View NEOLIT | View INDYLIT 20 |
