INDYLIT 3
Ultracompact Femtosecond Laser for Ophthalmology

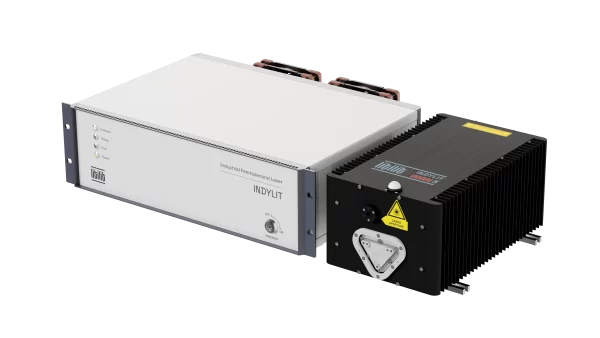

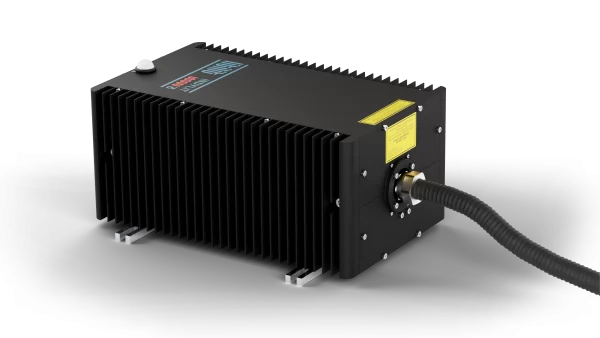

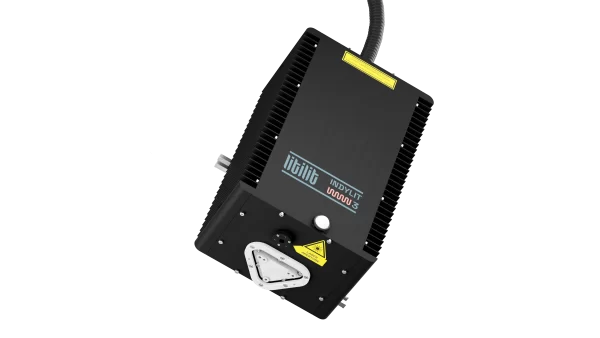

The Indylit 3 is an ultra-compact femtosecond laser with moderate average power and pulse energy, optimized for ophthalmology applications such as the SMILE procedure. Laser offers excellent pulse and beam quality, which, along with its robustness, makes it the perfect choice for ophthalmology applications. The laser head is highly compact, lightweight yet robust, and has very low heat dissipation (~10W). It is also dust and water protected (class IP51) and operates within a broad temperature range (15-40°C) and has an integrated pulse-picker, making integration simple even in the most tight and demanding environments.
- Wavelength
- 1030 nm
- Pulse duration
- 290 fs
- Average power
- 2.5 W
- Repetition rate
- 1–3 MHz
Key features
Ultracompact, passively cooled with very low power dissipation
Excellent beam and pulse quality
Maintenance-free & turn-key
Dust and water protection IP51
Technical Specifications
Full specification from the INDYLIT 3 datasheet. Measurement conditions and patents are in the Notes tab.
- Central wavelength
- 1030 ± 3 nm
- Average power 1)
- > 2.5 W @ 3 MHz (typ. 3 W)
- Max. pulse energy 1)
-
> 2 μJ @ 1MHz
> 0.8 μJ @ 3MHz - Pulse duration
- < 290 fs
- Pulse duration tunability
- 290 fs – 4 ps
- Internal pulse repetition rate
-
1-3 MHz,
down to 300 kHz in burst mode - Pulse picker
- Integrated
- Triggering mode
- Pulse picker control via TTL gate TTL signal (selectable gate or trigger mode)
- Burst length
- 1...12 pulses
- Max. energy in burst
- > 10 μJ @ 300 kHz
- Power attenuation 2)
- 100 – 1%
- Beam quality
- M² < 1.2
- Beam circularity 3)
- > 0.90
- Beam diameter (at 1/e² level)
- 1.5 ± 0.2 mm
- Polarization
- Linear horizontal, > 1:500 extinction
- Prepulse contrast
- > 1:1000
- Post pulse contrast
- > 1:100
- Beam divergence (full angle)
- < 1.5 mrad
- Beam pointing (RMS) 4)
- < 20 μrad
- Beam pointing vs temp.
- < 15 μrad/°C
- Power Stability (RMS) 5)
- < 1%
- Pulse Energy Stability (RMS) 6)
- < 1%
- Warm-up time (cold start)
- < 10 min
- Warm-up time (warm start)
- < 3 min
- Laser control interface
- CAN, USB
- Operating voltage
- 24V, 15A (100...240 V AC, 47...63 Hz to 24V AC/DC converter included)
- Average power consumption (after warm-up)
- 100 W
- Maximal power rating
- 300 W
- Operating temperature
- 18 – 32 °C
- Humidity
- non condensing
- Transportation/storage temperature
- -20 – +70 °C
- Dimensions – Laser head (L x W x H)
- 301 x 189 x 156 mm
- Dimensions – Control unit (L x W x H)
- 449 x 385 x 140 mm
- Dimensions – AC/DC converter (L x W x H)
- 250 x 125 x 60 mm
- Umbilical length
- 3 ± 0.2 m
- Cooling – Laser head
- air (passive)
- Cooling – Control unit
- forced air (fans)
1) Laser power is approximately constant in the 1-5MHz operation range. Pulse energy is therefore inversely proportional to the repetition rate.
2) Attenuation can be controlled by a few different methods: a) by PC user interface, b) by CAN register, c) by analog input (0-1V, rise time <1μs). Beam quality specifications are maintained down to 10% power level.
3) Defined as the worst case ellipticity along the z-scan (± 5 xLRayleigh) of the beam.
4) Measured during 8h operation starting 30 minutes after cold start. Environmental temperature stability within ± 1°C.
5) Measured with integration time of 1s at the same conditions as (4).
6) Measured within 10s time interval for at least 1000 pulses.
7) Technology is protected by international patents: LT6261 (B); JP6276471 (B2); US10038297 (B2); EP3178137; DK3178137 (T3); CN106575849 (B); PL3178137 (T3); LT6639 (B); LT2020 563. For details please contact Litilit.
Applications
Ophthalmology
Photopolymerization
Semiconductor and electronics
Where INDYLIT 3 is used
Each application page walks through the problem, the process and the results.
All applications
Ophthalmology and photopolymerization
A compact, low-heat source for ophthalmic systems such as the SMILE procedure, and for photopolymerization.
Semiconductor and electronics
Dicing, grooving and drilling of thin wafers and brittle materials.
Integration resources
INDYLIT 3 datasheet
Full PDF datasheet with performance curves, beam profiles, drawings and electrical specifications.
Dimensions and drawings
Laser head 301 x 189 x 156 mm, control unit 449 x 385 x 140 mm. Dimensional drawings are in the datasheet.
Support and dealers
Integration questions, service and your regional contact.
Full lineup
Which system is right for you?
Every Litilit laser is built on the same robust fiber platform. Choose the model that best matches your pulse duration, power, and repetition rate requirements.
| Specification | INDYLIT 3 Ultracompact Femtosecond Laser for Ophthalmology Selected | BIOLIT 2 Femtosecond Fiber Laser for Biophotonics | NEOLIT Ultrashort pulse fiber seeder for laser amplifier |
|---|---|---|---|
| Wavelength | 1030 nm | 1050 nm | 1020–1070 nm |
| Pulse Duration | 290 fs | 70 fs | 1–10 ps |
| Average Power | 2.5 W | 2 W | 1–50 mW |
| Repetition Rate | 1–3 MHz | 20 MHz | 10–40 MHz |
| Primary Applications | Ophthalmology, Photopolymerization, Semiconductor and electronics | Multiphoton microscopy, Photopolymerization, Ophthalmology | Seeding femtosecond and picosecond fiber and DPSS lasers |
| Request Quote | View BIOLIT 2 | View NEOLIT |
